Enfield Euro Mortice Door Sash Lock Body Profile Narrow Case 20mm 25mm 30mm D726

Description

NB: We don't use generic or edited stock photos. The photos you see here are ones we have taken ourselves, of an actual product from our stock. The item you see is exactly what you will receive. By buying from us you can be assured of getting an item that exactly matches the photos.

NEW!!
Latest addition to the loktonic product range

Enfield Narrow Style Mortice Locks available in three case sizes 20mm, 25mm, and 30mm
Smooth & definite operation suitable for narrow style doors, double glazed doors,
aluminium doors, u PVC or timber doors, and vans.
Accepts all standard euro cylinders.

Application :

• Suitable for use on gates, vans, sheds
• The lock is heavily zinc plated and passivated to resist corrosion
• Supplied with two black plastic escutcheons.
• 16mm throw dead bolt
• Non handed – the same lock can be fitted to both left and right-handed doors.
• The mechanisms are pre-lubricated

Dimensions:

D726/35

• Case Width 15mm
• Case Depth 51mm
• Case Height 174mm
• Centres 85mm
• Bolt Throws 16mm
• Reversible Latch
• Cylinder Pulls Back Latch and Deadbolt
• Dead Bolt Length 40mm
• Back Set 35mm
• Faceplate Length 240mm
• Face Plate Width 21mm

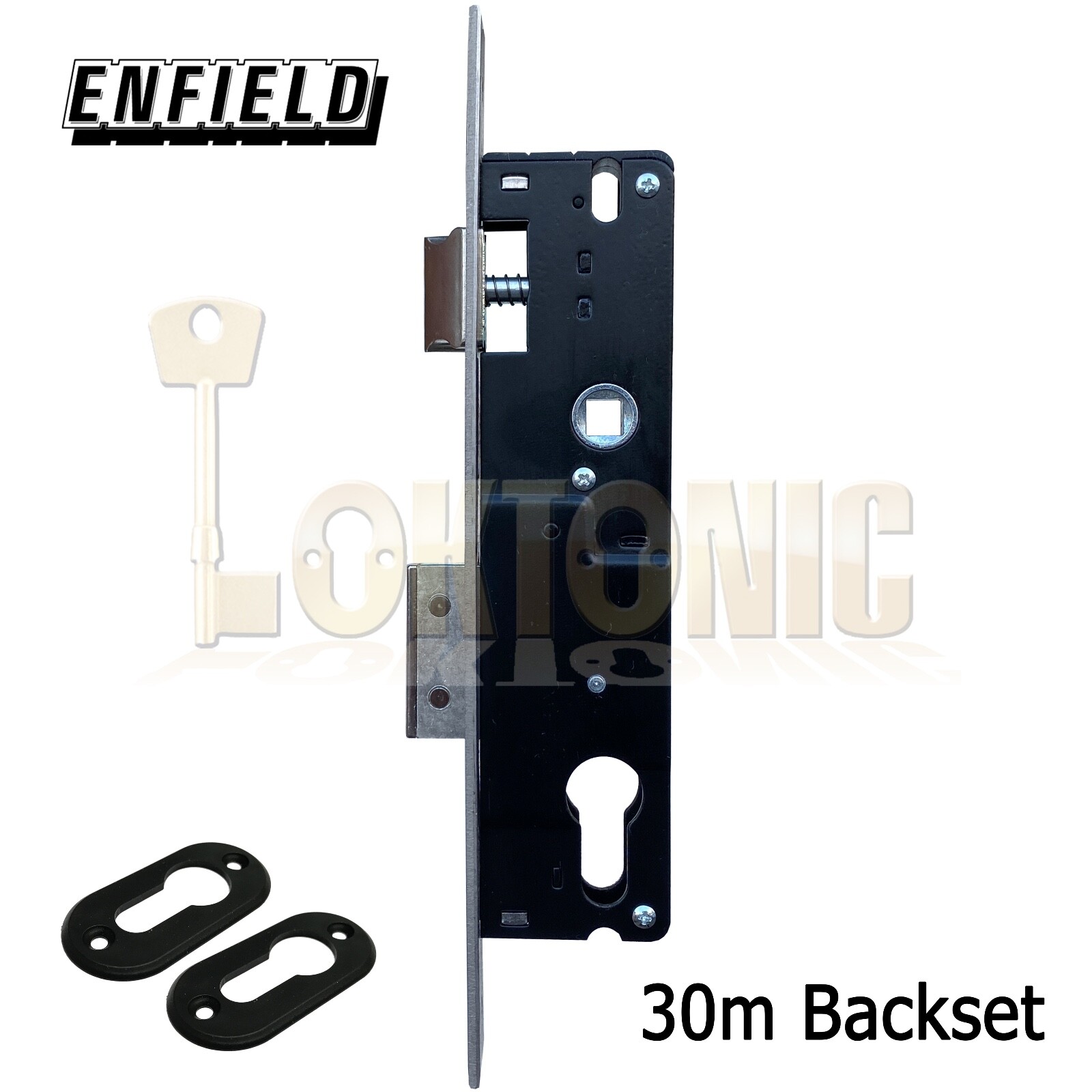

 D726/30

• Case Width 15mm
• Case Depth 46mm
• Case Height 174mm
• Centres 85mm
• Bolt Throws 16mm
• Reversible Latch
• Cylinder Pulls Back Latch and Deadbolt
• Dead Bolt Length 40mm
• Back Set 30mm
• Faceplate Length 240mm
• Face Plate Width 21mm

D726/25

• Case Width 15mm
• Case Depth 40mm
• Case Height 174mm
• Centres 85mm
• Bolt Throws 16mm
• Reversible Latch
• Cylinder Pulls Back Latch and Deadbolt
• Dead Bolt Length 40mm
• Back Set 25mm
• Faceplate Length 240mm
• Face Plate Width 21mm

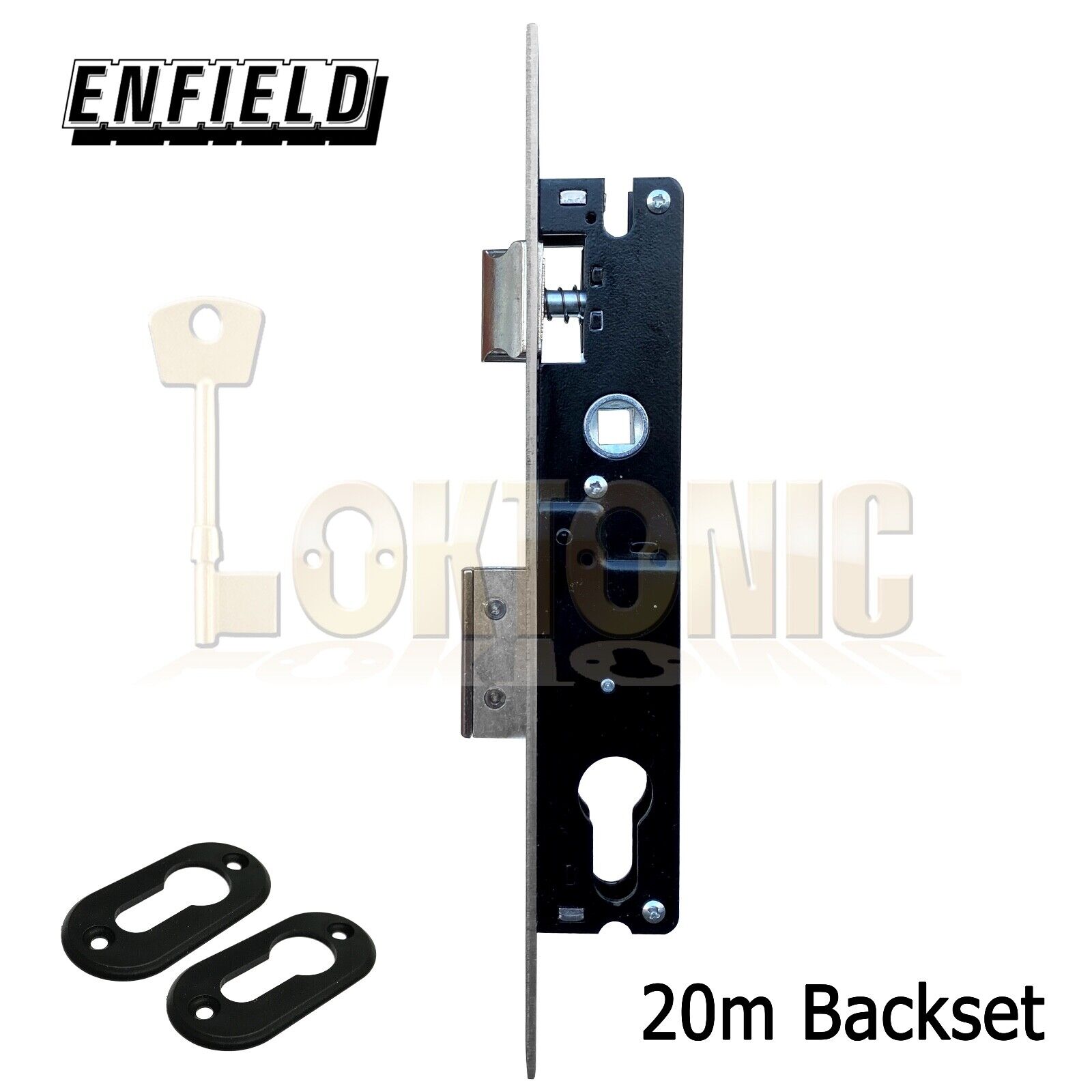

D726/20

• Case Width 15mm
• Case Depth 35mm
• Case Height 174mm
• Centres 85mm
• Bolt Throws 16mm
• Reversible Latch
• Cylinder Pulls Back Latch and Deadbolt
• Dead Bolt Length 40mm
• Back Set 20mm
• Faceplate Length 240mm
• Face Plate Width 21mm

NB: Euro cylinder is also required, and Strike Keep

The lock is heavily zinc plated and passivated to resist corrosion
Non handed – the same lock can be fitted to both left and right-handed doors
